This is a design I saw on a Facebook group. It was made by Dave Gasser and I thought it was so simple and genius that I had to make 3D files for it. All models are .625" tall so scale it to that. There are tighter fitting versions and one slightly oversized. a 1/4" ball end mill should cut it nice and fast. a light spring on top and you are good to go.. I left the bolt and screw holes out because those are really up to you. the groove only versions should easily come into vcarve on a zero plane and just add your 2D profile and holes.
* * * NOTE: ON SOME COMPUTERS THE FILES ARE COMING UP WITHOUT FILE EXTENTIONS. JUST ADD THE FILE EXTENSION AFTER DOWNLOAD. ALL FILE SHARES HERE ARE .ZIP * * *
KNIFE FOR MIDNIGHTMAKER
DRAG KNIFE FOR 1/4" SHANK
3D PRINTABLE VERSION BOX WITH USB COVER AND HINGE (1/8" HINGE PIN)
7 FREE WAVY FLAG SHAPES
I had to make a prop for a party so I'm sharing the files with everyone. I will be adding a few others to this collection within a few days.

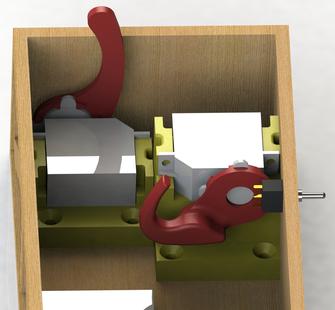

I'm making a useless box with my son. There's a link to the project below by others. But this is my box I'll be putting it in. might be some changes as I go. It uses two S3003 servos, an Arduino NANO, and a 2 position switch (ON/ON). I had ideas to make a unique trigger arm by it just was too complicated.
3D OUTLET AND SWITCH COVER BLANKS
My outlines are be sized for 1x8 and 1x12 boards and optimized for a 1/4" bit which means no inside radius less than .125". That means fast cutout times. But some of the vectors will be designedfor v carving. see the blue notes.

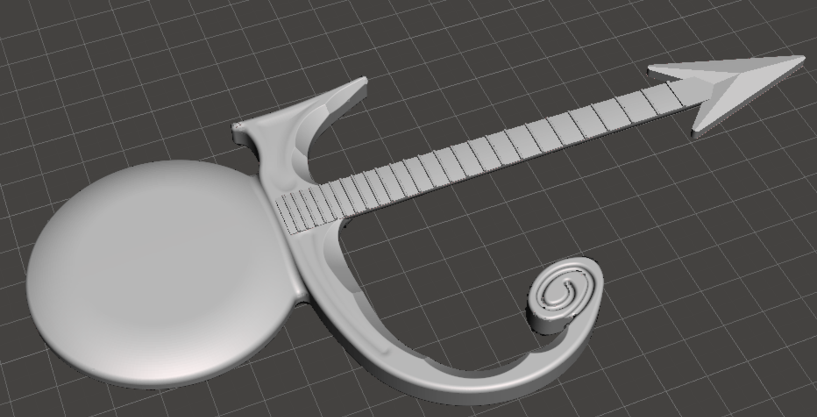

GUITAR FOR A PRINCE
CEILING DIFFUSERS 6 INCH
I designed a drag knife based off another but designed to be milled out of 3/8" aluminum bar on the x-carve. it will be cut with a 1/4" end mill except for the place for the 1/4" rod valley which requires a 1/4" ball. I'm not including the screw holes for the clamps because they can easily be done by hand or on a drill press.
ADDED 8/2/2019 - FOR 3D PRINTER. 4 PARTS
HAND IN CRACK / CRACKED WALL
* * * * TAKE AWAY: I am legit. I solid model very well. I don't steal peoples files. I give credit when credit is due (usually on the inventables forum posts). I share because I love helping people. Especially the home hobbyist. I support and love vectric and Design and Make. They support me. And do not go on someone's business page when you lack the knowledge in 3D modeling and the laws and rules of said files.
* * * * NOTE 2 : One individual decided to attack my business page on Facebook because he thought that I was copyright infringing on Design and Make (an awesome company that I buy 3VM files from). He was completely wrong on all levels. I contacted Design and Make and here is their response... (click to enlarge)
SHAPE FOR MAKING A GROOVED BOWEL
(NO GUARANTEE THAT THESE ARE 100% CORRECT)
My Arduino NANO rough wiring diagram. (click to enlarge). The Issue I ran into was the NANO takes around 9VDC to power safely from the Vin pin. The servos take 5VDC. the NANO has a 5VDC output BUT it has a max output of 40ma. Larger servos take over 100ma. I used a 600ma 5VDC step down connected to the 9VDC power supply to feed the larger servos. (NOT IN VIDEOS). I wanted this to be plugged into the wall and not worry about batteries.
Modeled after a picture someone shared
(THIS IS THE ONE I BUILT)
*** 8/14/2017 UPDATED. HAVE NOT TEST CARVED BUT SHOULD BE CLOSE.
COMBINE IN MESHMIXER
(WEEKLY BATTLE WINNER)
This is my version of the game. It's close to the movie one, but completely 3D. The cards I plan on 2 sided laser engraving. You should create a blank glue up 28" x 20" x 1.5" thick to carve from for the main board (actual dimensions 27" x 19.5" x 1.25") . the detail piece gets glued to the console. It can be made from 0.75" thick material.
FILES FOR TEXAS
different length bamboo poles:
FOR 3D PRINTER. 1 PART SHIP PLUS BASE
(WEEKLY BATTLE WINNER)
S3003 SERVO BASES AND OLD PARTS (NOT USED)
EDISON BULB RELIEF
BOTTLE AND CAP SIGN PANEL
A VERSION WITH .4375" WALLS THAT CAN BE MADE FROM 1 X 6 WOOD
BATMOBILE PINEWOOD DERBY CAR
These are file that I MODELED. They may look similar to others available for sale, but they are my creation. I am giving them away for free. Please consider donating to help me continue to create these. I give you full open permission to profit from the items you create using these. I do NOT give you permission to sell these files themselves. I will seek penalties for anyone caught doing so. - Phil Johnson
I'm making these files available to help the victims of hurricane Harvey in my own way. please consider donating a portion of your profits to any organization helping the Texas victims.
Phil Johnson p.s. I will be adding more as I go.
DOG BONE SIGN PANEL
3D PRINTABLE VERSION BOX WITH SERVO STANDS BUILT IN, USB COVER, AND HINGE (1/8" HINGE PIN)
WOODEN TRAIN TRACK PARTS
(CLICK TO ENLARGE)
(WEEKLY BATTLE WINNER)
A HOBBIT DOOR
ZATHURA GAME 3D MODEL
Add 3D clipart and combine with STLs. ALMOST EVERY COMBINATION. 17 STL FILES
