MY X-CARVE PROJECT BOXES

SINGLE 40 AMP SSR ENCLOSURE

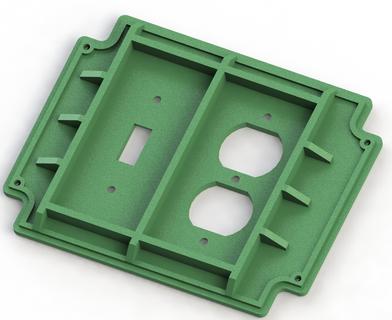

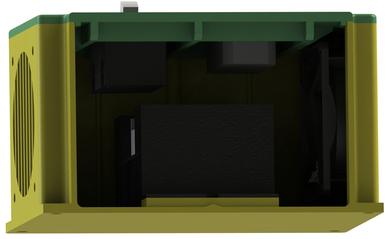

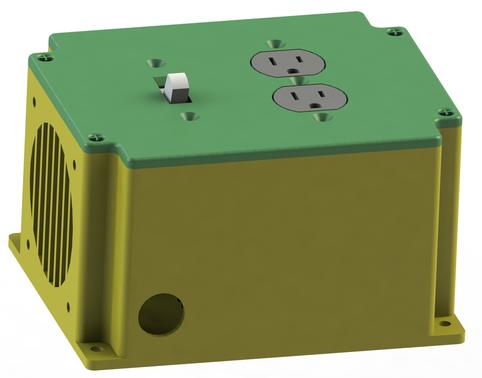

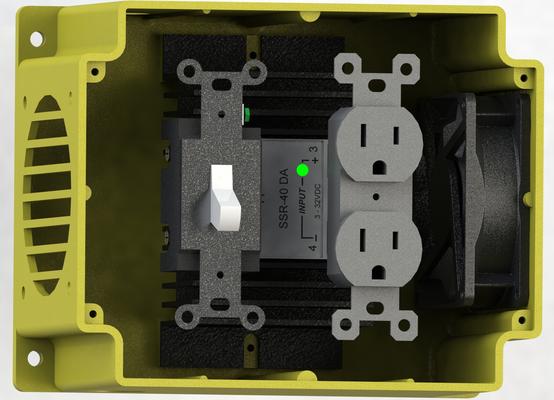

This has a mounting pad for a single SSR with a low profile heat sink. An 80mm case fan can be mounted on either end or both. the lid has switch and outlet mounting holes and is reinforced. There are two 7/8" holes for 1/2" conduit knockout parts.

THIS IS FOR THE GEN 2 SIDE BOARD. THERE ARE 2 MOUNTING POSITIONS FOR ACCESSOIRES. THESES WILL MOUNT THERE.

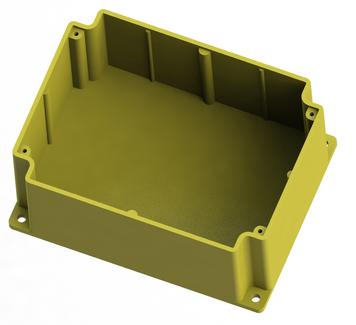

BLANK STARTER PROJECT BOX
