DESIGNS BY PHIL, LLC

TURN KEY ORDERING PAGE

By submitting this form, you are agreeing to purchase once it's ready to ship. It may be a long wait if many are interested. I will do my best to keep the wait short. if at anytime you whish to be removed from the list, please email me and let me know!

Thank you!!!

MAKE SURE YOU CHOOSE THE CORRECT SPINDLE FOR YOUR X-CARVE. THIS DOES NOT FIT ANY OTHER CNC MACHINE. THIS IS FOR THE X-CARVE ONLY

No  mount is included with this. It's is only the shield which mounts to existing Designs By Phil Quick Disconnect Mounts. You may have to adjust the fit of the tabs with a file on older mounts, but it will fit.

Here are the 3 items you need to purchase from Jtechphotonics.com

* * * THE SHIELD IS NOT A REPLACEMENT FOR SAFETY GLASSES!!! YOU SHOULD STILL WEAR THE APPROPRIATE SAFETY GLASSES!! I AM NOT RESPONSIBLE FOR YOUR LACK OF SAFETY. USE AT YOUR OWN RISK!

OPTIONS (FREE):


  • UPGRADED JTECH FAN MOUNT I DESIGNED
  • 3.8w LASER SHIELD FOR FOCUSING AT 1.5" (NO FUME EXTRATION PORT)

+ $10 shipping inside U.S.A.

$25

**** THE 3.8w SHIELD DOES NOT HAVE AN EXHAUST PORT FOR FUME EXTRACTION NOR DOES IT COME WITH THE PORT PARTS!

NEW!! DC SPINDLE MOUNT VERSION

(SHOWN WITH OPTIONAL 3.8W SHIELD)

(LASER AND DRIVER NOT INCLUDED)

AND

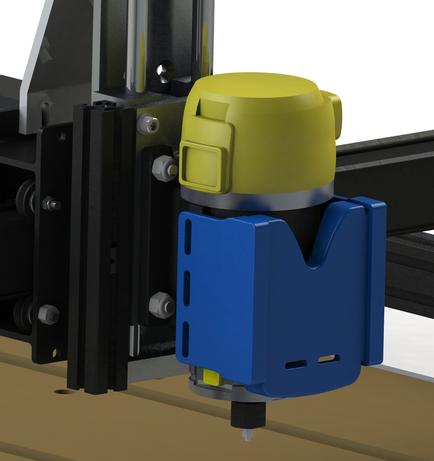

DEWALT 611 SPINDLE MOUNT VERSION

WARNING: DO NOT LASER CUT OR ENGRAVE VINYL

(I will ship to anywhere, but you are paying for the actual shipping cost)

****Jtech Photonics has changed their install kit as of 6/20/2018. Instead of ordering their mounting kit, you now need to order the 2 wires listed below to feed thru or attach to the drag chain.​

ALREADY HAVE MY MOUNT BUT WANT TO FOCUS AT 1.5" FROM THE HEAT SINK???


BUY JUST THE SHORT 3.8w LASER SHIELD

​SIGN UP SHEET BELOW!!

​(Does NOT have fume extraction capabilities)

+ $15 shipping inside U.S.A.

<-- You can use the 2.8w shield with the 3.8w laser but you will have to focus at 3" from material to heat sink.

(I will ship to anywhere, but you are paying for the actual shipping cost)

1. Laser/Driver Combo Kit

$60

MY JTECH QUICK DISCONNECT MOUNT FOR THE X-CARVE

First come first serve basis. I will email you and let you know where you are in line. Shortest time is 1 to 2 weeks. Please be patient. I will do my best. No money is exchanged until it's ready to ship. I will then send an invoice to your email address when ready.

2. Wires Needed to go from controller and power supply to the carriage. (QTY. one of each)

MAKE SURE YOU CHOOSE THE CORRECT SPINDLE FOR YOUR X-CARVE. THIS DOES NOT FIT ANY OTHER CNC MACHINE. THIS IS FOR THE X-CARVE ONLY

NEW FAN MOUNT ON LEFT

(CLICK TO ENLARGE)

WAITING LIST SIGN UP FORM ​​

INCLUDES:


  • AVAILABLE FOR THE DEWALT 611 SPINDLE MOUNT OR THE DC SPINDLE MOUNT
  • 3 PIECE MAIN MOUNT - VERSION 6
  • ​LASER SHIELD WITH SAFETY ACRYLIC AND PORT INSERT INSTALLED
  • 1 STRAIGHT CONNECTOR AND PORT ADAPTOR WITH 1.4375" O.D. - 1.25" I.D.
  • 2 THUMB SCREWS FOR ATTACHING MOUNT TO DEWALT SPINDLE MOUNT
  • ​2 M4x14 SCREWS AND LOCK NUTS FOR ATTACHING LASER DRIVER.
  • ​4 #6-32 X 2" SETS OF HARDWARE FOR MOUNTING THE DRIVER.
  • ​* STOCK X-CARVE Z AXIS ABLE TO ENGRAVE UP TO APPROXIMATELY 2" STOCK
  • ​LASER SHOULD BE FOCUSED WITH THE LASER HEATSINK 3" AWAY.
  • ​2 DRIVER STANDOFFS.

3.8w SHIELD ONLY SIGN UP FORM ​​

(THE FAN KIT IS NOW INCLUDED WITH THE LASER DRIVER COMBO)

<--  JTECH HAS STARTED TO SUPPLY THE NEW FAN MOUNT. IF YOU HAVE ORDERED YOUR LASER AFTER FEB. 2018, YOU DO NOT NEED ME TO PRINT ONE. SEE PICTURE ABOVE. IF YOUR FAN MOUNT LOOKS LIKE THE ONE ON THE RIGHT, HAVE ME PRINT A NEW ONE FOR YOU.

OR
