2021 Arduino Mount and Cover

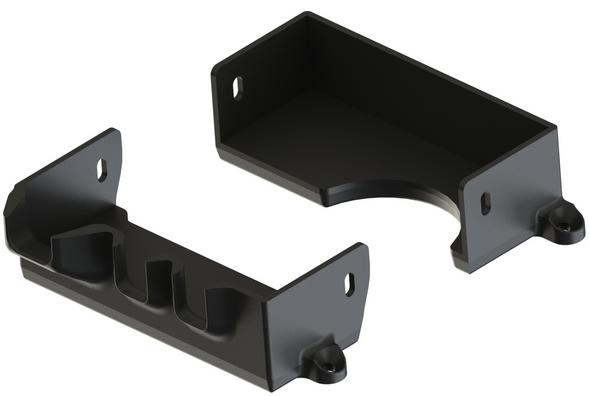

The power supply covers are now 1 piece with no glue needed. Print it upside-down with no supports. Screw holes are 20 degrees.

2021 Driver Cover

(I USE THE 60mm FANS ON THE FULL CONTROLLER BUILDS)

(REV 7 - 2/3/2021)

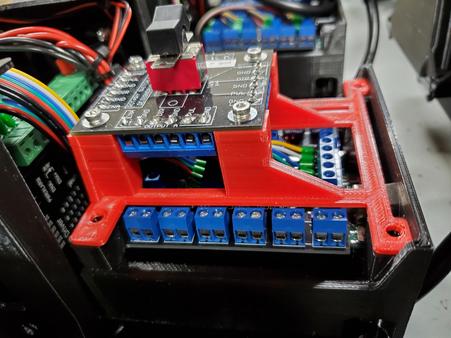

The adaptor fits on top of the 2021 Arduino Mount Base and gets sandwiched between the base and the new taller lid below. Uses M3 T nuts and hardware. The Driver Lid clears the switch.

NO SUPPORTS NEEDED!

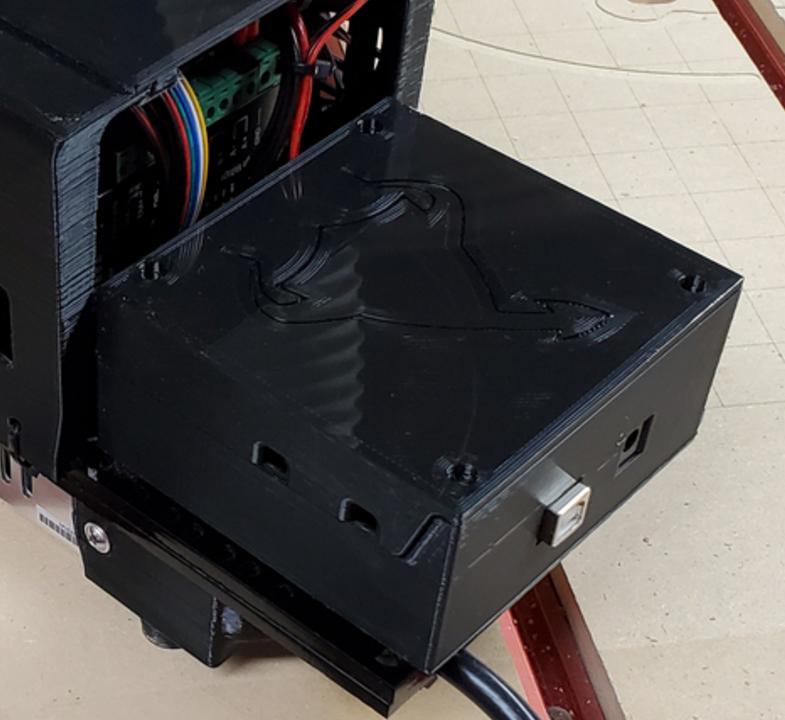

The new mount used the same M3 hardware to mount it to the Demon Plate TM  . But it uses 7 M3 hammer head style 2020 T nuts to attach the Arduino and the cover with M3 x 12mm screws.

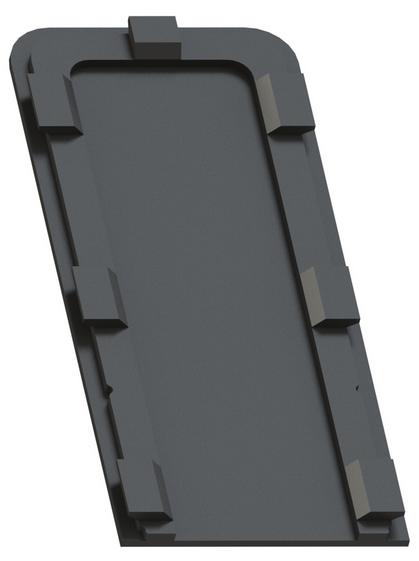

The main case from rev 10 hasn't changed but the slide on cover is now 1 piece with no glue needed. Print it upside-down with no supports. The main case also gets printed upside-down with only the modeled supports needed.

2021 Demon Rotary Switch Parts

2021 Power Supply Covers
