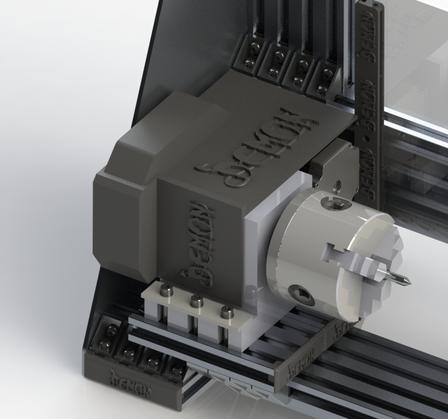

CHUCK BELT COVER:

PRINT WITH DEMON TEXT ON TOP. NO SUPPORTS NEEDED. to keep dust off the belt.

Give me your couch change!

This is for a 16mm x 1500mm ball screw (SFU1605) and BK12/BF12 bearing set. Cost of screw and bearings are around $100. the brackets are made from .25" thick, 3" x 4" aluminum angle and .38" thick 3" bar.

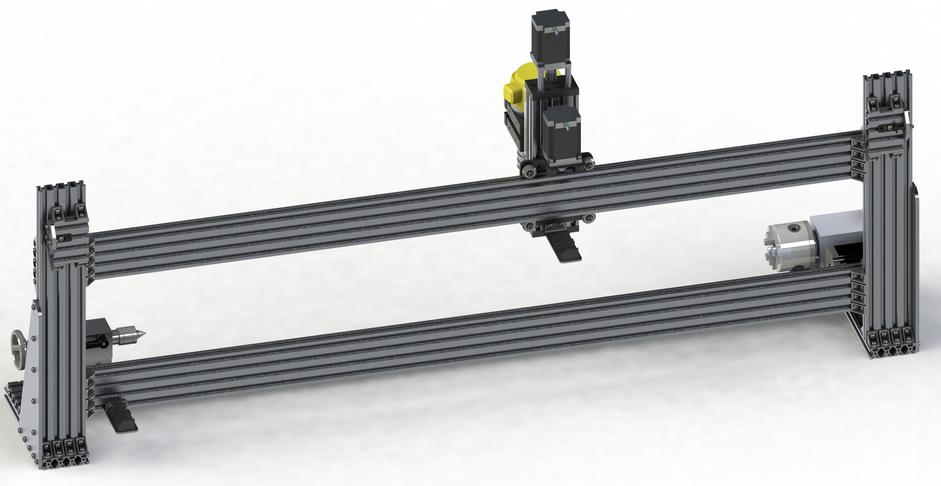

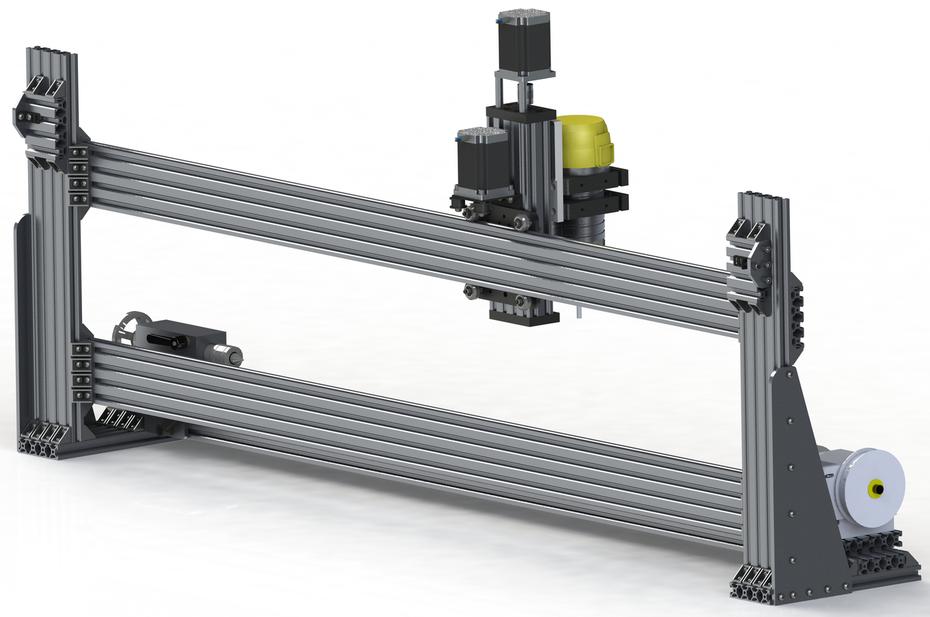

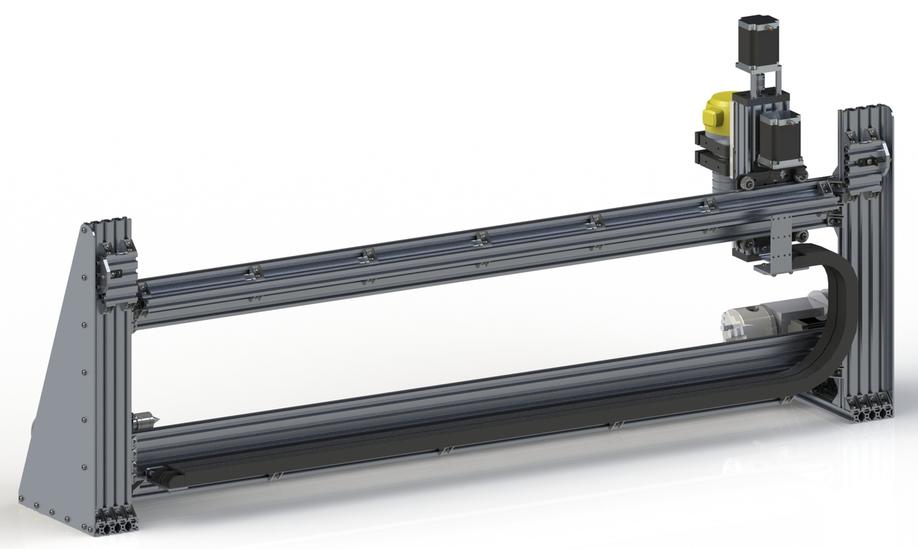

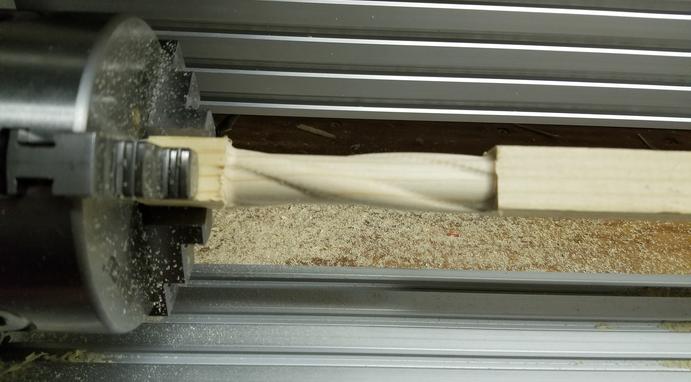

This is my standalone rotary CNC machine design. It's a work in progress and I started to build it. I will update the drawings as I complete it. along with links to parts and more information.

BALL SCREW X AXIS

As I'm building the machine itself I'll be making minor adjustments to ensure strength (see REV 03 change notes). I did not note this because corner brackets can look different, BUT if you get the corner brackets with the little nubs that fit in the extrusion slot, you will have to grind off one sides nubs on almost all corner brackets, and most will require both sides ground off. I used a bench grinder which took about 15 to 20 seconds each. so if you can source corner brackets without nubs, do so. See 3rd image below.

Buy me a Pina Colada!

I'm building the controller in a free Pelican case I had. It's the perfect fit for the 3 drivers, Arduino, and power supply. It has four 50mm fans, 2 blowing in from the bottom, 2 blowing out from the top, for ventilation. It's not done yet, but I'll fully detail it once complete. It's a 3 driver version of the Demon controller.

Buy me dinner!

Please consider a donation!

ROTARY DEMON MODS

I love to help others learn what I have. I don't expect anyone to pay for information. but this website isn't free and it takes time to create these. If you can spare a dollar or two, awesome! If not, no worries and enjoy the information!

MAIN MACHINE BUILD

Buy me a beer!

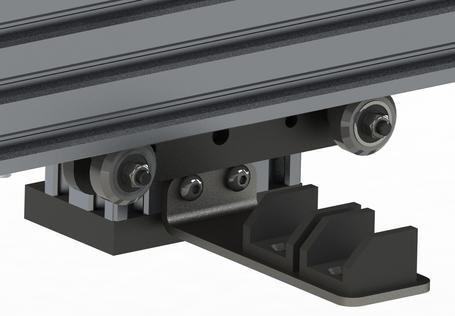

* REV 01 notes: Added drag chain brackets. Increased decimal places to 3 on inch dimensions.

* REV 02 notes: Added note on BOM about sourcing parts.

* REV 03 notes: Changed Item 10 to max size, made 1/8" plate instead of 1/4" (hardware

                           changed). Added rib to back of main X axis extrusion. Added support to bottom

                           of tail stock rail. Added brackets for drag chain and fully detailed drag chain

                           assembly.

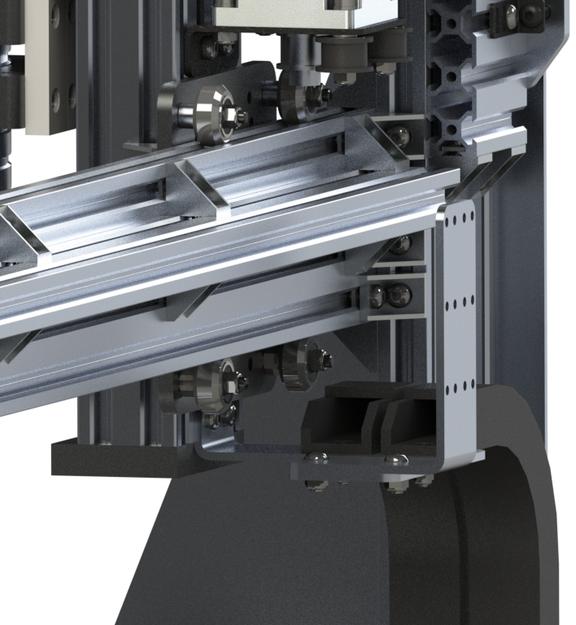

* REV 04 notes: Added item 51 (drag chain support bracket). added relief in item 9 for Delrin nut

                          screw heads. moved lower drag chain bracket attachment point. fixed DXF of

                          item 10.

* REV 05 notes: Added some wire management. .STL files for 3D printing are now in the .zip file.

* REV 06 notes: Added ALL STL files for 3D printing to the .zip file. Changed the standard

                          C beam to XL C beam Z axis. changed spindle mount plate. Part numbers

                          shifted because of removed parts. switched to no tap belt end brackets in main

                          plan. removed STL and STEP files from ZIP file for milled parts. This is the final

                          changes to the main design. Future upgrades will just be documented

                          separately like a ball screw X axis.

* REV 06-1 notes: Item 56 (spindle mount) DXF file was at 2x scale. Fixed.

$2 donation

ROTARY DEMON CNC

NOTIFICATION OF CHANGES EMAILING LIST

I will update with links and pictures as I build it.

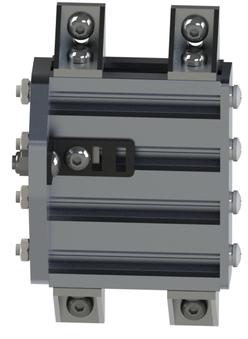

EXTRUSION END CAPS:

PRINT WITH DEMON TEXT ON TOP. YELLOW SUPPORTS BREAK AWAY. NO OTHER SUPPORTS NEEDED. ALL PLUGS ARE DRAFTED FOR EASY INSERTION.

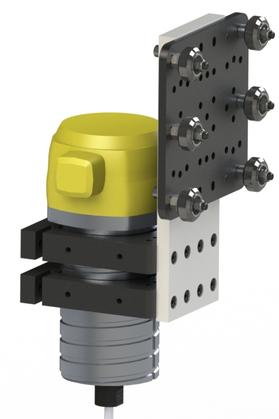

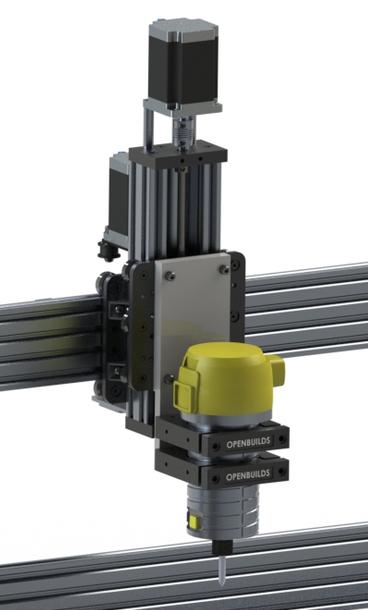

I find its a pain in the butt to adjust the v wheels on the standard C Beam setup. Here is a much beefier alternative using the XL C Beam Plate (NOW IN PLAN).

Simplified wiring diagram of the controller. See the Demon Controller page for a more detailed schematic and more information. This CNC machine only requires 3 drivers, not 4.

$1 donation

(click to enlarge)

* REV 01 notes: Header was missing ")" to ignore top text.

Powered By

(click to enlarge)

$10 donation

By signing up for this list, you will get notifications EVERYTIME I make revisions or additions to the design or training material. You will also get updates of free and paid Rotary based files.

Buy me a shot!

CONTROLLER BUILD - DemonLTE

$20 donation

Designs By Phil, LLC

WINDOW T BRACKETS:

PRINT WITH DEMON TEXT ON TOP. THIN SUPPORTS GET CUT AWAY (6 TOTAL). NO OTHER SUPPORTS NEEDED. CUT 1/8" PLEXI TO 24" X 7.5". HAS M5x14mm MOUNTING SCREWS AND 2 SHORT M3 SCREWS IN THE BACK TO PINCH THE PLEXI.
