THE DEMON PLATE tm

+ shipping inside U.S.A.

$19.99

  • 1x Demon Plate TM​​
  • 1x Arduino Mount
  • 8x M4x16mm Screws, Washers, and Locknuts (TB6600 Mounting)
  • 4x M4x10mm Screws and washers (Mean Well Power Supply Mounting)
  • 2x M3x14mm Screws, Washers, and Locknuts (Arduino Mount Mounting)
  • 3x M3x12mm Screws (For Mounting Arduino To The Supplied Mount)

  • Demon Plate TM (mounting plate) NOW RELEASED!!!
  • Demon Rotary Switch TM Release By 5/1/2020

Description

It can be used to swap x axis or y axis (single or tandem drivers)

What's included

+ $8 shipping inside U.S.A.

THE DEMON ROTARY SWITCH TM

  • 1x Demon Rotary Switch (Fully Assembled)​​
  • 1x 1/2" Thick Spacer

(I will ship to anywhere, but you are paying for the actual shipping cost. Typically $15, Iceland is $25)

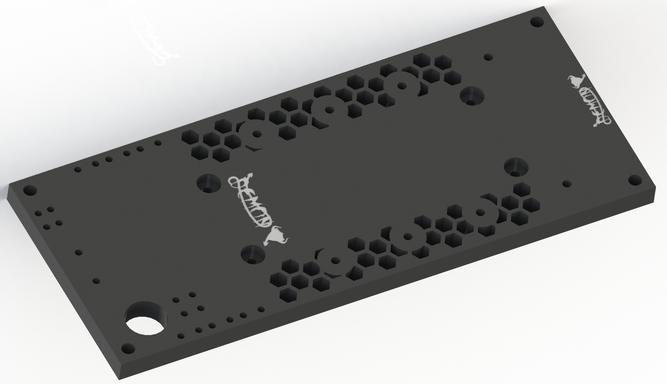

The Demon Plate TM Mounts all the components of a Demon Controller TM in a tightly packed organized package. Mount it inside a case or cabinet on standoffs using the 4x  1/4" holes on the corners. There are small holes along either side of the Demon Shield TM area for zip ties to keep wire tidy. It is designed for a Mean Well 24VDC 15 amp power supply and 4 TB6600 drivers. Wires, Arduino, drivers, and Demon Shield TM not included. Made from black acrylic.

What's included

DEMON SHIELD tm ACCESSORIES

The Demon Rotary Switch TM allows you to easily connect a rotary axis to a GRBL CNC machine using a Demon Controller TM or similar TB6600 driver controller. Not to be confused with complete 4th axis control. Using GRBL, you can only have 3 axis control. What this will do is allow you to utilize the Rotary features in Vectric's Vcarve and Aspire software with a GRBL controller running TB6600 drivers. Imagine just jogging over to the center of rotation on your Rotary axis mounted off to the side of your machine. Flip the switch on the Demon Rotary Switch TM and it will switch the correct axis over to another TB6600 driver controlling your rotary axis. The only change you have to make to your GRBL settings is the rotary's steps per mm (See the Rotary Demon training page for more information on using a rotary axis with GRBL)  It also leaves your other axis you switched from energized and locked in place. You can connect it to X axis or Y axis. If connecting it in place of an axis that has 2 slaved TB6600 drivers, like the Y1 and Y2, the Demon Rotary Switch TM has an A and B output that are slaved. Simply connect only 1 of the Y outputs from the Demon Shield TM to the INPUT of the Demon Rotary Switch TM and us both OUTPUT A and OUTPUT B to connect to the Y1 and Y2 TB6600 drivers.

(I will ship to anywhere, but you are paying for the actual shipping cost.)

Timeline of Release Goals

BOTTOM VIEW

Description

Demon Shield TM accessories work with the Demon Shield TM to expand your CNC experience. They work on the same concept of making wiring easier. The wiring of a CNC  machine shouldn't be the overwhelming intimidating chore it used to be. keep checking back for more accessories to enhance your CNC journey!
