Ender 3 Drag Chain

WHAT TO PRINT AND HOW MANY

Take off triangular cover on the hot bed and replace with the adaptor. 12 to 14 links are for the hot bed, the rest are for the hot end (gantry/X axis). You may want more on the hot end chain to get you closer to the extruder.

ENDER 3 DRAG CHAIN

Thingiverse Link

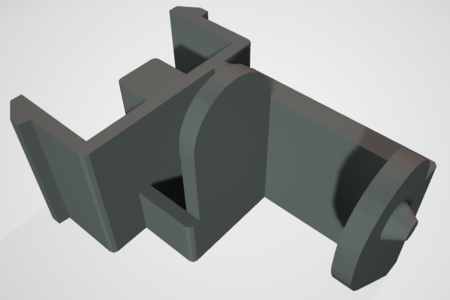

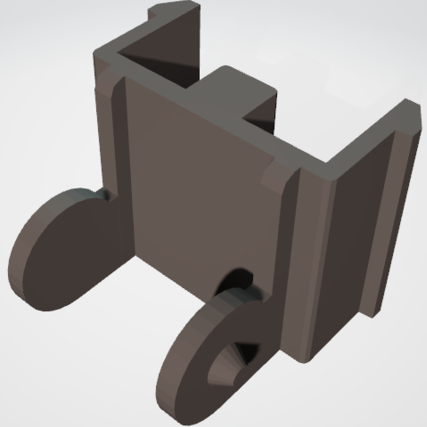

Top Mount For Hot End - QTY 1

DESIGNS BY PHIL, LLC

(Minimum)

BACK TO 3D PRINTING

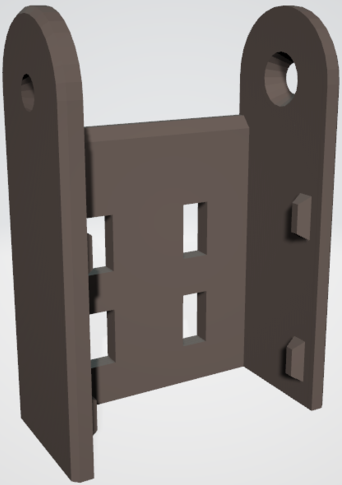

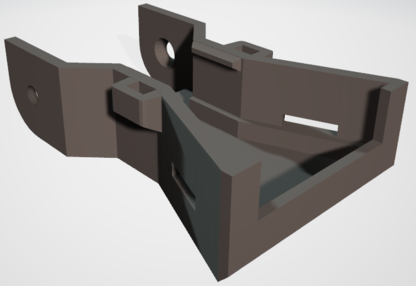

Hot Bed Adaptor - QTY 1

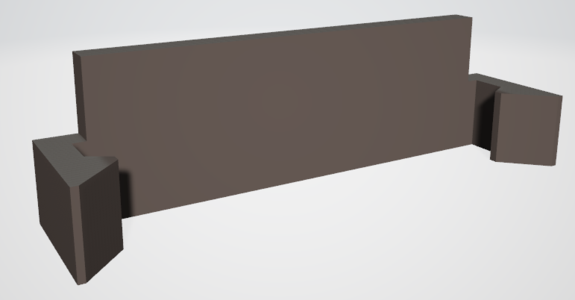

Main Chain Link Cover - QTY 30

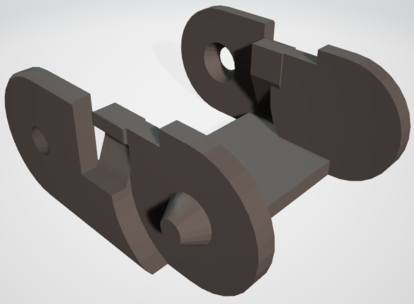

Main Chain Link - QTY 30

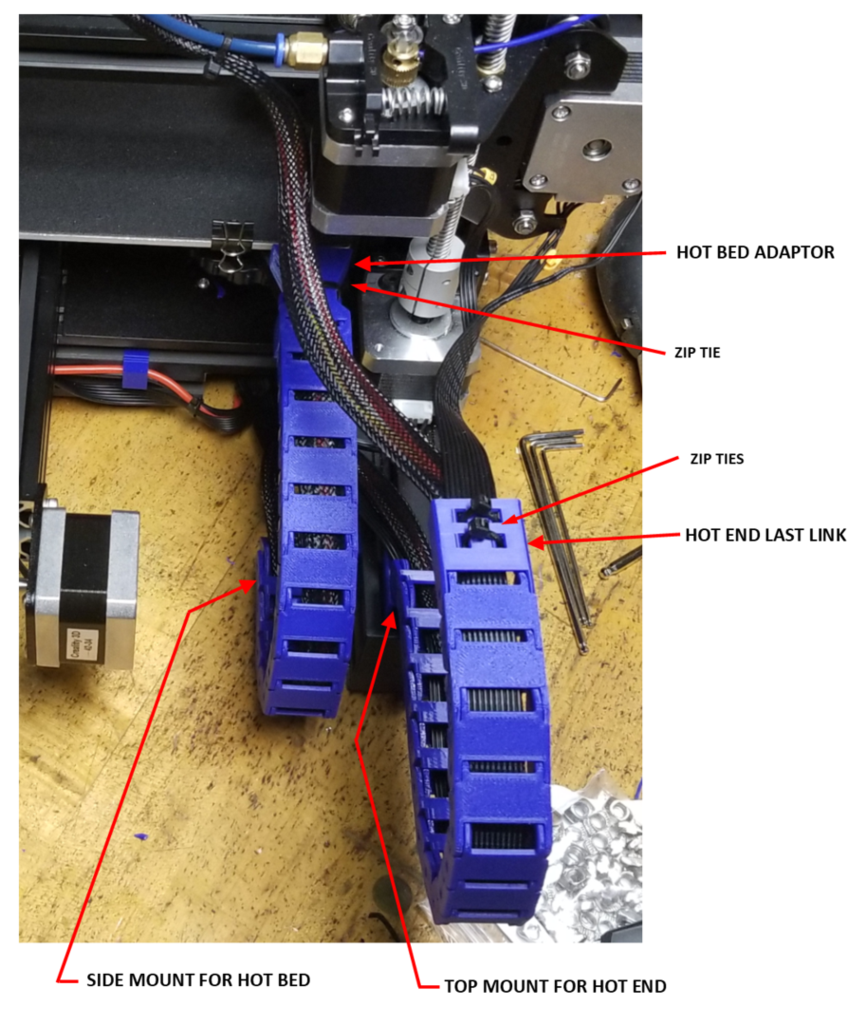

ASSEMBLY

BACK TO 3D PRINTING

(Minimum)

First off, none of this is possible without JohnnieWhiskey on Thingiverse. So go buy him a beer! These are all his files that I am just giving an easier guide of what to print. Thank you Johnniewhisky!!!! Also, the parts are renamed to make it easy.
