Description

  • 1x Analog Control Enclosure​​
  • 1x High Quality Green 19mm Momentary Push Button
  • 1x High Quality Yellow 19mm Momentary Push Button
  • 1x High Quality Red 19mm Momentary Push Button
  • 1x 5.5mm x 2.1mm DC Power Jack Socket
  • 1x 5.5mm x 2.1mm Male Plug With Screw Terminals
  • 10 Feet of 18/6 Shielded Cable
  • Wiring Diagram

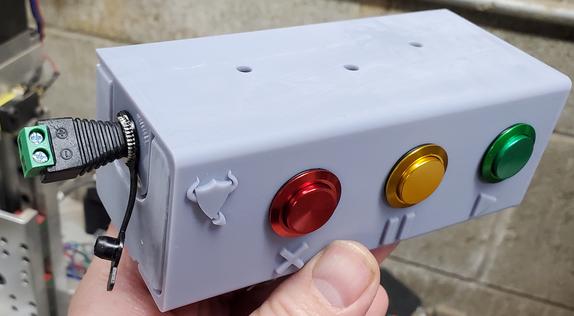

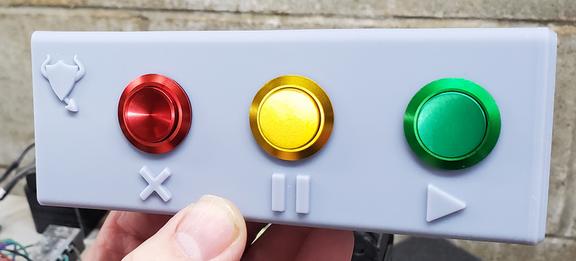

The Demon Controller TM Analog Enclosure remote mounts the PAUSE, RESUME, and ABORT buttons, along with the PROBE connection, anywhere you want for easy access. I designed it with ease of assembly in mind (see the picture with the 22mm socket fitting straight on to tighten the push buttons). I also designed it to be mounted above, below, or in front of a surface. This is resin printed, so DO NOT OVER TIGHTEN THE SCREWS. Because it is resin printed, there may be minor scratches on the surface that are unavoidable from the post processing or transferred from the build plate. The fully assembled version and kit version both come with 10 feet of 18/6 shielded cable with the ends labeled on the fully assembled version. Both come with a wiring diagram. Want a different color? Resin is very paintable! feel free to paint it any color to match your machine!

What's included

DEMON CONTROLLER tm  ANALOG CONTROLS
